How do I display an Attached Xref as Ghosted
I wish to attach a large Xref file displayed as 'ghosted' - so to easily check for element clashing within the current file.
How is this best achieved?
Or welcome any suggestions other than 'ghosted' - as a visual aids to check. (eg: See attached images from another 3D app.)
0
Comments
-
maybe XDWGFADECTL variable is what you are looking for
https://help.bricsys.com/hc/en-us/articles/360011288054-Working-with-external-references0 -
If you're looking for clashes, then you could try using

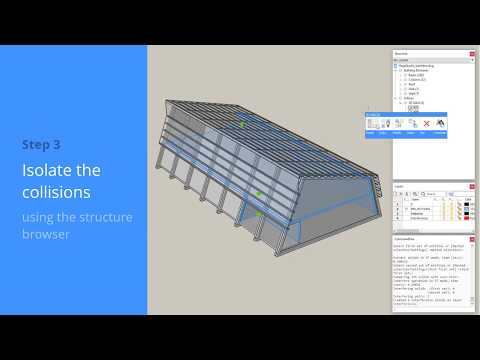

INTERFERE. It will find all the clashes in the model for you, even nested within xrefs. TheStructurePanelwill allow you to walk through any clashes found.Video here
https://youtu.be/XmCQ8VOLcnQRegards,
Jason Bourhill
BricsCAD V21 Ultimate
CAD Concepts0
