Convert drawingview to model space.

Miroslav Helebrandt
Miroslav Helebrandt
in 2D Drafting

How can I open this file with drawingviews in model space?

Thanks

Comments

  • Michael Mayer
    Michael Mayer

    I think you have to Select everything on your Layout and then File>Export>Layout to Model Space
    to a new File. Then you will have a File with your Content in Model Space.
    Seems that looks a bit different than the original Layout though.

  • Miroslav Helebrandt
    Miroslav Helebrandt

    Thank, but drawingviews are not there.
    And they are the most important.

  • Michael Mayer
    Michael Mayer

    There was an early Video on Bricscad YouTube about that.
    I think you had to select a Viewport and had an option to
    export this especially to Model Space but I did not find
    that option in your special case.

  • Miroslav Helebrandt
    Miroslav Helebrandt

    I cannot find it, can any help with this?

  • eddiet
    eddiet

    The SECTIONPLANE command is an alternative that would allow you to create 2D Sections, and then the 3D model could be removed from the copy of the drawing you are going to send out.
    SECTIONPLANE
    Pick two point.get app for pc.
    Select the section plane line>right-click>pick Generate 2D/3D section
    Make sure 2D section is selected, and adjust settings as needed.

  • Miroslav Helebrandt
    Miroslav Helebrandt

    Thank ,
    but i dont have 3d model,
    I have only *.DWG files with drawingviews,
    which i would like to edit in model space.

  • David Waight
    David Waight

    @Miroslav,

    If you do a select all in model space (even though you can't see anything) and then explode, the 3D item will show up in two pieces.

    Not sure if that is how you should do it, but it worked for me.

  • Michael Mayer
    Michael Mayer
    edited September 2018

    @Miroslav Helebrandt said:
    I cannot find it, can any help with this?

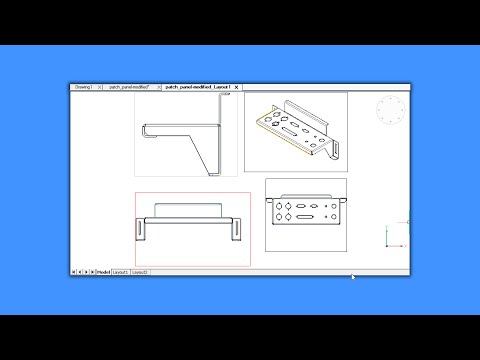

    https://www.youtube.com/watch?v=C6m_5MgJSJ8&list=PLONdQc9bizsf2_qPwck35mjdI1PNXKHPa&index=6

    So basically what I already said above.
    I don't know why, opposite to shown in Video, it skips your Viewports ....

  • Michael Mayer
    Michael Mayer

    Something is strange with your7 "DRAWINGVIEW"s
    There are 14 real Viewports to find in Structure Panel but I can't
    locate them in the drawing ...

  • Miroslav Helebrandt
    Miroslav Helebrandt

    Bricscad I use only for 2D.
    This *DWG are from Fusion 360,
    there is nice parametric modeling,
    maybe I switch to Bricscad for 3D too.
    I dont know possibilities ...

  • Michael Mayer
    Michael Mayer
    edited August 2019

    There is only few parametric in Bricscads Direct Solid Modelling.
    It is distructive like in Microstation, but offers intelligent Tools
    with multi Solid Editing capability as an alternative.

    You should try it.
