How to add a reference system grid to a viewport?

Tamás

Hi,

Is it possible to add a reference system grid to my viewport, like autocad map: https://help.autodesk.com/view/MAP/2024/ENU/?guid=GUID-30F7E71E-5E9D-467C-8630-3795A23193EA?

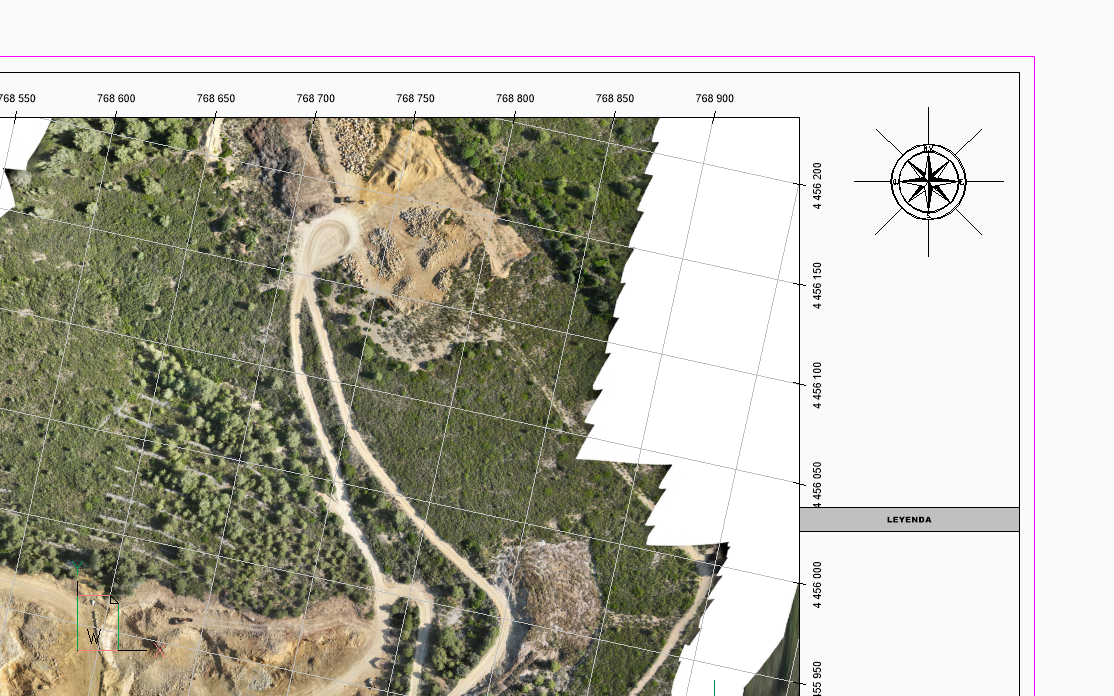

I attached a picture of what I want to do.

Thanks,

Lyubov_Osina

There is no such a feature in BricsCAD. You can send a feature request about it, so it could be considered by developers: https://boa.bricsys.com/protected/support/NewSupportRequest.do

Tamás

Thanks!

aridzv

@Tamás
Hi.
first - same with me,hope bricscad will make this feature.

for the mean time here are 2 lisp's I found & use:
1. for model space "DrawGrid.LSP"
2. for paper space "KoordinatenRand.lsp".

ALANH

I have something that draws grids on a viewport, the viewport can have a twist angle so grid reflects this.




PM me and can discuss.
