Weld symbols does not show

Hello,

I've some issues with the AMWELDSYM command. It simply does not show anything other than a straight line in the drawing. I have access to the weld properties but it simply does not show. Anyone have been trough this?

Comments

  • I'm currently having the same issue, did you ever figure this one out?
  • Dear HeitorWWA and RobbieShea,
    I am from the Bricsys team. Would you share more information to be able to reproduce your issue?
    I need the BricsCAD version you use, the scenario you run, and an example drawing.
    Best regards,
    Berdj

  • I am using BRICSCAD V24 on Ubuntu 22.04.S LTS 64 bits.

    The machine I use is a Dell G7 with:

    16 GB RAM

    Intel Core i7 2.2GHz

    NVIDIA GP107M [ GeForce GTX 1050 Ti Mobile]

    The dwg I am having problem with:

    Last time I started a new part and things ended up working out. But now the same happened again and i could figure somethings out:

    1. The problme starts after rotanting the part in the model space. I ended up doing so to change the front view and make it easier to work;
    2. If I copy and past the part in a new document and dont change it's oriention on the model space the weld symbol works;
    3. If I execute AMSETUPDWG for the 2d commands before manipulating the 3d object, the weld symbol works fine;
    4. In the case above, as soon as I delet one of the layout tabs, the weld symbol turns into a straight line, like its plane was rotated 90°. And if I undo the action (crtl+z) the problem stays the same.
    5. If the object is not rotated it does not mather if i delet or not the layouts;

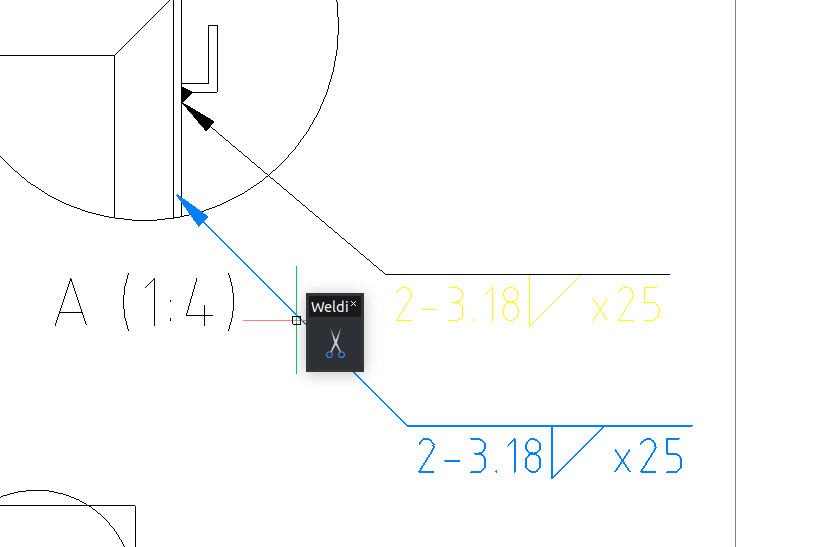

    One other thing I am not undertanding is that, when it is working, as soon as I save the file the weld object turns in to a block and loses the color properties I had made and the possibility of editing.
