Read bim data from wall

damorcor

Hi,
I'm using the command bimwall to add a new wall to my drawing.
Using c# I would like to read the information of that wall related to bim.

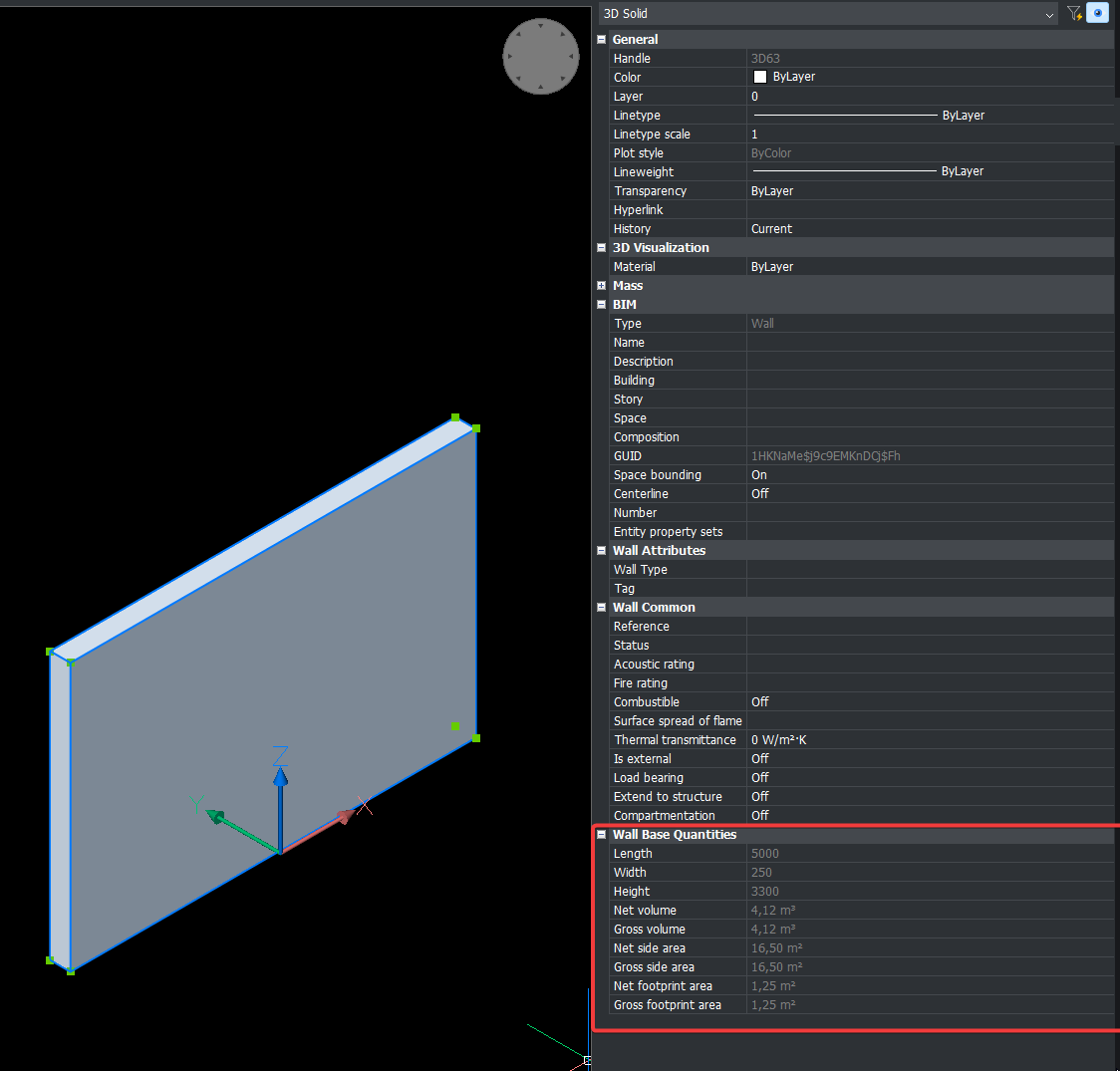

I'm receiving a solid3d and I'm not sure how to read the information of that entity.
anyone can help me, please?

JanBeno

Hi.
Did you check the commands here?
https://developer.bricsys.com/bricscad/help/en_US/CurVer/DevRef/

Its_Alive

Not sure about .NET, however BRX has a class BrxDbProperties, In Python, you can do something like

from pyrx import Rx, Ge, Gi, Db, Ap, Ed, Brx

import traceback

@Ap.Command()

def doit():

    try:

        ps, id, _ = Ed.Editor.entSel("\nSelect: ")

        if ps != Ed.PromptStatus.eNormal:

            raise RuntimeError("Oops {}: ".format(ps))

        props = Brx.DbProperties.listAll(id)

        for prop in props:

            if "~BIM" in prop:

                val = Brx.DbProperties.getValue(id, prop)

                if not val.isValid():

                    continue

                print(prop, val.format())

    except Exception as err:

        traceback.print_exception(err)

result

: DOIT
Select: AxisAngle~BIM 1.570796
AxisDelta~BIM 0.000000, 0.000000, 4884.773153
AxisLength~BIM 4884.773153
Building~BIM
Centerline~BIM Off
ColumnType~BIM
Composition~BIM
Description~BIM
EndPoint~BIM 0.000000, 0.000000, 4884.773153
GUID~BIM 2UvTjo3G1BY9YgXMmop9hr
InstancePropertySets~BIM
Name~BIM
Profile~BIM EURO HEA 300
RoomBounding~BIM <bool::true>
SequenceNumber~BIM
Space~BIM
StartPoint~BIM 0.000000, 0.000000, 0.000000
Story~BIM
Type~BIM Column

Its_Alive

Not sure why Bricsys has such a hard time with the forum code tags

<div>from pyrx import Rx, Ge, Gi, Db, Ap, Ed, Brx</div><div>import traceback</div><br><br><div>@Ap.Command()</div><div>def doit():</div><div>&nbsp; &nbsp; try:</div><div>&nbsp; &nbsp; &nbsp; &nbsp; ps, id, _ = Ed.Editor.entSel("\nSelect: ")</div><div>&nbsp; &nbsp; &nbsp; &nbsp; if ps != Ed.PromptStatus.eNormal:</div><div>&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; raise RuntimeError("Oops {}: ".format(ps))</div><br><div>&nbsp; &nbsp; &nbsp; &nbsp; props = Brx.DbProperties.listAll(id)</div><div>&nbsp; &nbsp; &nbsp; &nbsp; for prop in props:</div><div>&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; if "~BIM" in prop:</div><div>&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; val = Brx.DbProperties.getValue(id, prop)</div><div>&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; if not val.isValid():</div><div>&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; continue</div><div>&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; print(prop, val.format())</div><br><div>&nbsp; &nbsp; except Exception as err:</div><div>&nbsp; &nbsp; &nbsp; &nbsp; traceback.print_exception(err)</div>

ALANH

What does the Dumpit show.

;;;===================================================================;

;;; DumpIt                                                            ;

;;;-------------------------------------------------------------------;

;;; Dump all methods and properties for selected objects              ;

;;;===================================================================;

(defun C:Dumpit ( / ent)

  (while (setq ent (entsel "\n pick object "))

    (vlax-Dump-Object

      (vlax-Ename->Vla-Object (car ent))

    )

  )

  (princ)

)

;(dumpallproperties (car (entsel)))

Just a ps how do I wrap code here usually use [code]
