Lisp code for inserting the Block

inserting the block is very difficult i need to choose only coordinate not scale or orientation that as to default scale 1 and rotation 0

(defun c:Drawinginsert (/ dcl_id)
  ;; Load and display the dialog
  (setq dcl_id (load_dialog "D:\\Boobathy\\My Doc\\Brisk Cad automation\\input_dialog.dcl"))
  (if (not dcl_id)
    (progn
      (princ "\nError: Failed to load DCL file.")
      (exit)
    )
  )
  (if (not (new_dialog "input_dialog" dcl_id))
    (progn
      (princ "\nError: Failed to create new dialog.")
      (exit)
    )
  )
    ;; Set up action for OK button
  (action_tile "accept" "(adaptorinsert)(done_dialog 1)")
  ;; Set up action for Cancel button
  (action_tile "cancel" "(done_dialog 0)")

  ;; Start the dialog and get user inputs
  (start_dialog)
  (unload_dialog dcl_id)
  (princ)
)
(defun adaptorinsert (/ spindle shank oal path filename drawingpath)

    ;; Retrieve values from dialog
  (setq spindle (get_tile "spindle"))
  (setq shank (get_tile "shank"))
  (setq oal (get_tile "oal"))

  (princ (strcat "\nSpindle: " spindle))
  (princ (strcat "\nShank: " shank))
  (princ (strcat "\nOAL: " oal))

  ;; Construct file path and filename
  (setq path "D:\\Boobathy\\adaptors\\")
  (setq filename (strcat spindle "-" shank "-" oal))
  (setq drawingpath (strcat path filename ".dwg"))

      ;; Debugging output
  (princ (strcat "\nLooking for file: " drawingpath))

  ;; Check if the drawing file exists
  (if (findfile drawingpath)
    (progn
      ;; Insert the drawing
      (command "_.insert" drawingpath  pause "1" "0" "" )
    )
    (princ "\nError: Drawing file not found.")
    ;princ "(done_dialog 1)")
  )
    ;; End the function
  (princ)

)

Comments

  • Hello.

    Although it is more verbose, it is safer to use the (vla-) approach.

    Like this:

    <pre>
    (vl-load-com)

    (defun ...
        ...
        (setq app (vlax-get-acad-object)
            doc (vla-get-activedocument app)
            model (vla-get-modelspace doc)
        )

        (setq insPnt (getpoint "\nInsertion point: "))

        (if insPnt (setq blkObj (vla-InsertBlock model insPnt drawingpath 1 1 1 0)))

        ...
    )
    </pre>

    With the (command) approach, there should be another "1" inserted, for the Y scale:
    <pre>
    (command "_.insert" drawingpath  pause "1" "1" "0" "" )
    </pre>

    (command) and (vla-) work differently.


  • A couple more suggestions.

    (command "_.insert" drawingpath  "S" 1 pause "0"  )

    Attreq will set whether to allow for attributes to be added also.
    (command "_.insert" drawingpath  "S" 1 pause "0" att1 att2 )

    Also look at Attdia.

    I normally use -insert with command.


  • thank you very much, i just trying to inset some Standard items using that specification and Item No. this will be used for all our collogues....

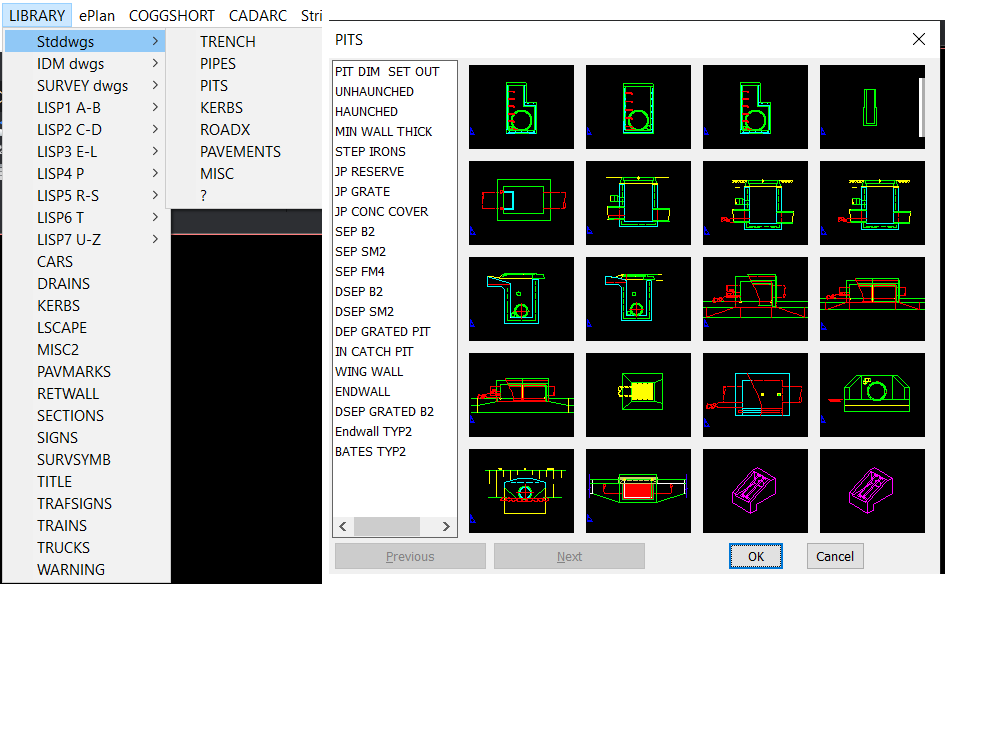

  • For Standard items I use pop menu's, a lot of people use Tool palettes.



  • I always use:

    (setvar "attreq" 0)

    (command "-insert" drawingpath  "S" 1 pause "0" )

    (setvar "attreq" 1)
