Altitude vs. story elevation

JanBeno
JanBeno
in BricsCAD BIM

Hi guys.

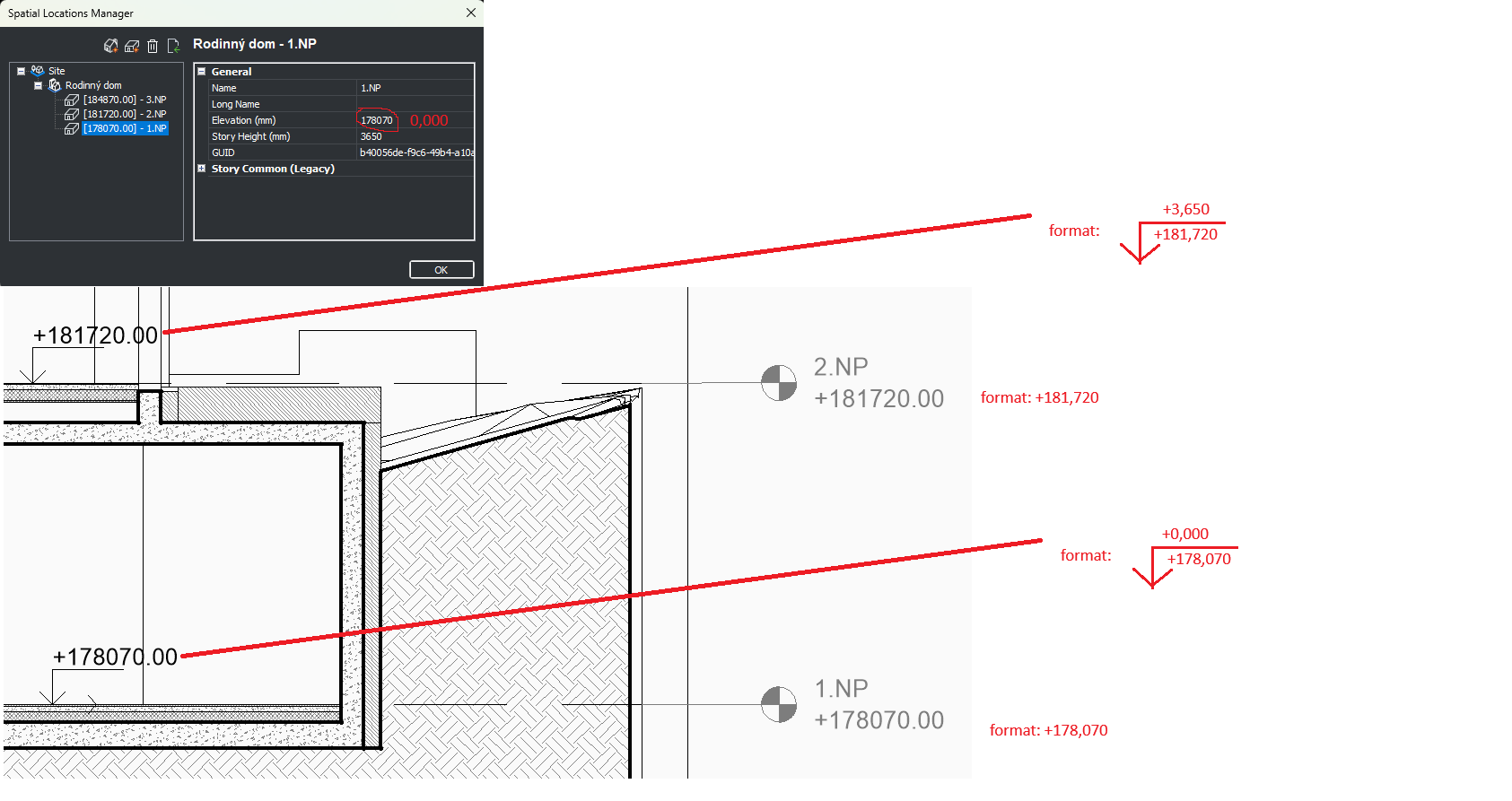

In BricsCAD BIM I need to create a SpotElevation tag so that it shows the altitude above sea and story elevation. The StoryIndicator should have format in meters.

I also need to know how to set the altitude of the project´s 0,000.

Please help ;)

Thanks


Comments

  • JanBeno
    JanBeno

    For simplicity - I just need to implement the real altitude into my project.

    Thanks

  • JanBeno
    JanBeno

    Dear guys, please help.

    I just want the Spot Elevation tag to show in meters while the project units (and dimensions) are milimeters. It´s how we draw it in my country.

    I have tried many alternatives to BEDIT _ElevationTag but with no success :(

    Maybe any ideas how to set the text as a field?

    Thank you.

  • Tom Foster
    Tom Foster

    I think you'll need to GEOREFERENCE your model - just starting to look into that myself.

  • JanBeno
    JanBeno
    https://forum.bricsys.com/discussion/comment/56662#Comment_56662

    Please let me know if you find out something ;)

    I hope such a trivial thing should be possible.

    I wonder why no one asked this before:

    • altitude vs. floor elevation
    • add altitude value to the spot elevation tag
    • different units for dimensions and spot elevation tag

    Thank you.
