Schraffuren selber machen

Elias
Elias
in Other

Guten Tag

Mir ist aufgefallen, dass einige Schraffuren nicht vorhanden sind.

Zb. die Schraffur für Metallbau Isolation. Wie kann ich diese möglichst effizient selber erstellen sodass die Schraffur auch mit dem Command: Schraff verwendet werden kann.

Comments

  • Anthony Apostolaros
    Anthony Apostolaros
    edited August 13

    Key Elements of Hatch Pattern Syntax:

    Header Line:
    *pattern-name, description

    ● *pattern-name: The name of the hatch pattern, preceded by an asterisk. It should be no more than 31 characters long.

    ● description: An optional description of the pattern.

    Descriptor Line:

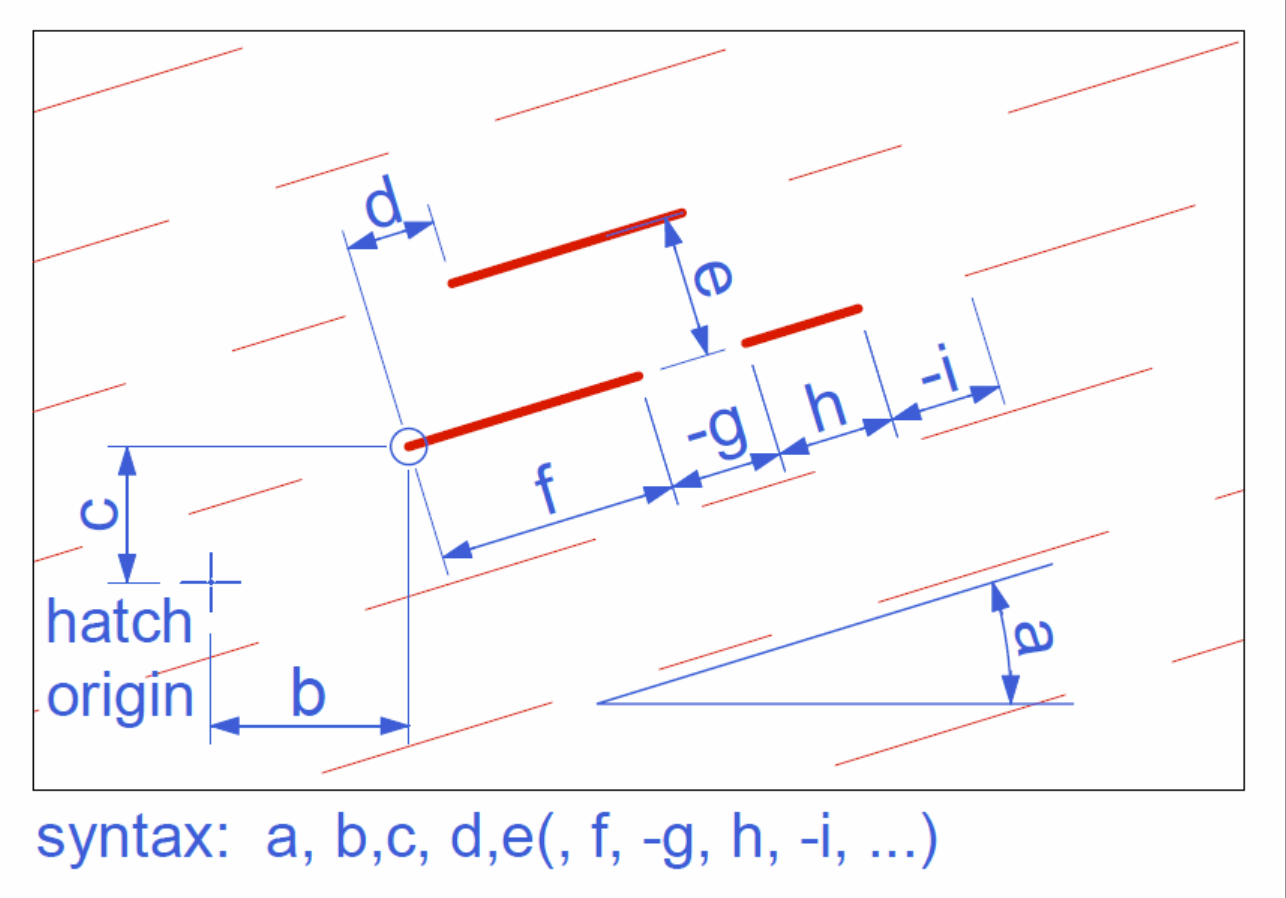

    angle, x-origin, y-origin, delta-x, delta-y, dash-1, dash-2, ...

    ● angle: The angle of the line segment (in degrees, counterclockwise from horizontal).

    ● x-origin, y-origin: The coordinates of the starting point of the line segment.

    ● delta-x, delta-y: The offsets (displacements) for subsequent lines in the pattern.

    ● dash-1, dash-2, ...: Optional parameters defining the dash pattern for non-continuous lines

    Example:
    The standard hatch pattern *ANSI31, which represents a masonry pattern, is defined as:

    *ANSI31, ANSI Iron, Brick, Stone masonry
    45, 0,0, 0,.125

    This defines a pattern named ANSI31, with lines at a 45-degree angle, originating from (0,0), with a vertical spacing of 0.125 units.

  • ALANH
    ALANH

    There is make hatch programs out there google.

    Post an image of "hatch for metal construction " maybe like these ?

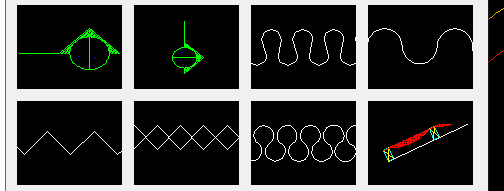

    Cadarc Insul.png

  • Elias
    Elias
    https://forum.bricsys.com/discussion/comment/57314#Comment_57314

    Vielen Dank ich mache mich mal auf die suche nach einem geeigneten Programm
