V25 Text Font[Arial] Not Working

Cnut
Cnut
in Linux

Ubuntu V24 BricsCAD V25 Trial. I opened up one of my files and the text is showing up as 00000. The numbers appear to be working but not the letters.

Must be some font problem? I changed the font to romanc.shx and the text display is correct.

Font [Arial] is not working for letter characters.

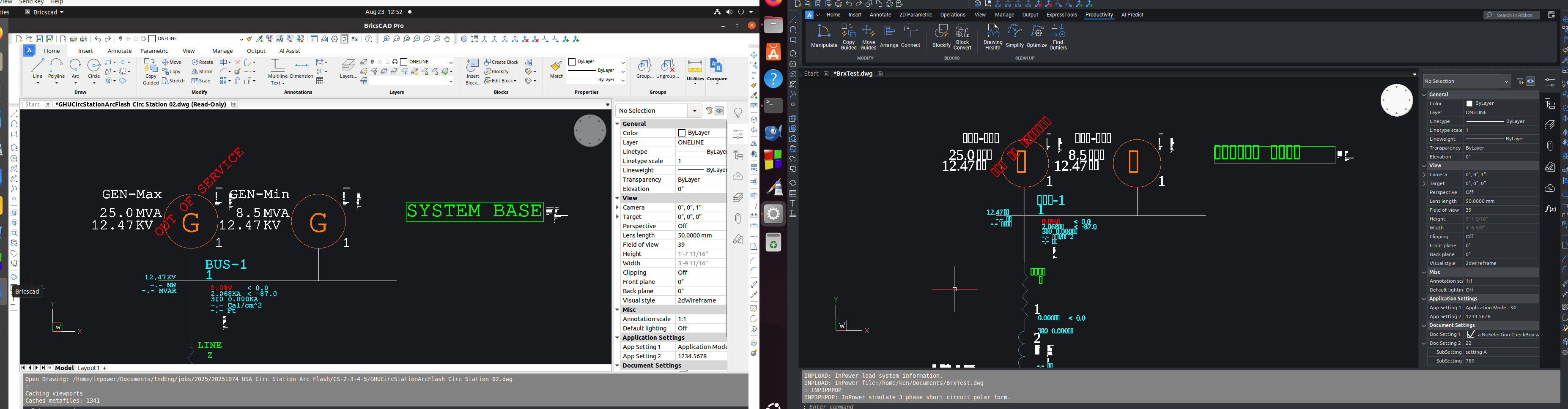

This image shows the same file with V23 vs. V25.


Comments

  • Cnut
    Cnut
    edited August 23

    Fixed the problem like this, unfortunately this is specific to only one drawing.

    How to fix the default [Arial] font?

    • Type STYLE in the command bar and press Enter to open the Text Style Explorer dialog box.
    • Locate the Standard style (or create a new one) and change its Font property to your desired font.
    • Click OK to save the changes to the Text Style.

  • Cnut
    Cnut

    copied this folder from V23 to V25, fixed the problem

    /usr/share/fonts/truetype/freefont
