Kamal Hinduja: What are the advantages of using blocks and templates in 2D drafting?

kamal123
kamal123
in 2D Drafting

Hi All,

I'm Kamal Hinduja, based in Geneva, Switzerland(Swiss) . Can anyone explain in details What are the advantages of using blocks and templates in 2D drafting?

Thanks, Regards

Kamal Hinduja Geneva, Switzerland

Comments

  • bva1968
    bva1968

    Hello
    I use blocks a lot because they regularly appear in my projects.
    You can create and edit them in a separate DWG file.
    You can quickly place them in your new drawing using tool palettes.
    And if you want to copy or move that block in your drawing, just click on one element. Very handy.

  • bva1968
    bva1968

    The next step is to create a parametric block.
    I don't know what industry you work in, but this method can save you a lot of time.
    Creating one is something for an advanced CAD user.
    You can also look in the Bricscad library, which contains a lot of blocks.

    Ben

  • ALANH
    ALANH

    I have 740 blocks in one directory let alone how many I have over all, just collected over the years, if your not using blocks then you are not taking advantage of CAD. One of the most simple is your Title block used in your plotted sheets. Set up with mu;ltiple attributes.

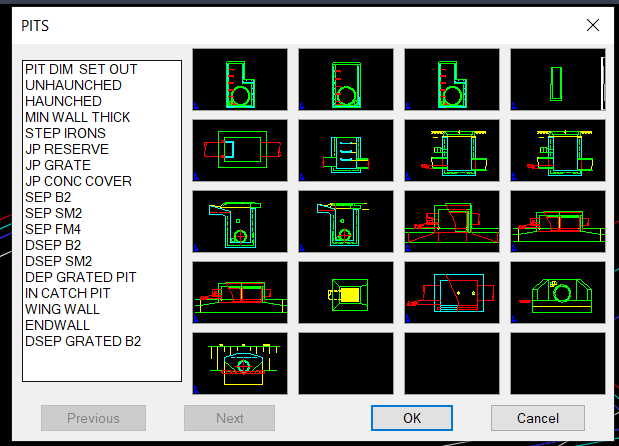

    An example select via block image or description.

    menu 5.png
