November 2025 edited November 2025 in 3D Modeling

Is it possible to draw 3darc in Civil? I've tried Strings command but couldn't figure out how to draw that geometry object.

0

Comments

Sakko

November 2025

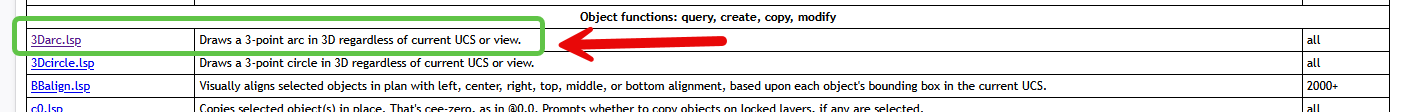

download the 3darc lisp function from
https://realerthanreal.com/autolisp/index.html

You can draw any 3D arc in 3d space by providing 3 points…!

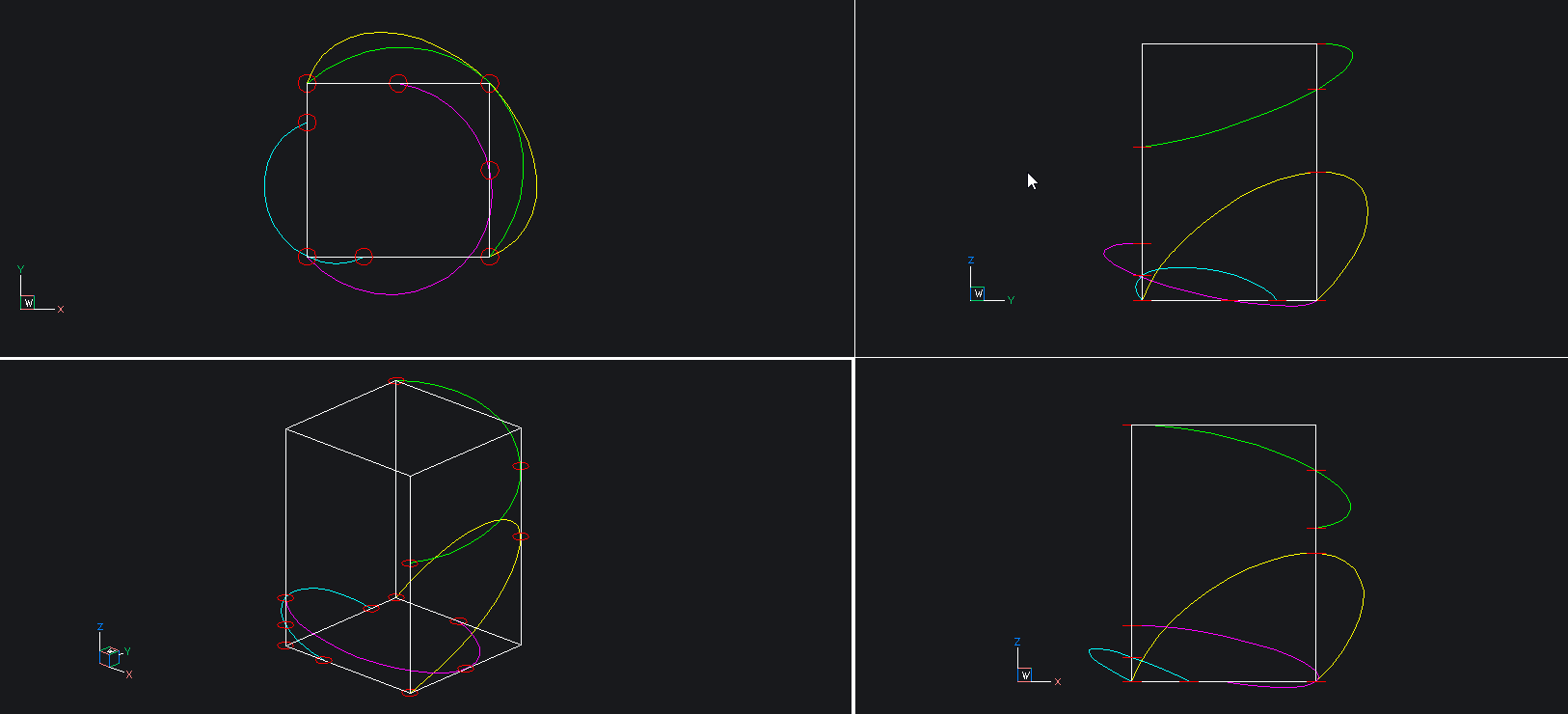

All selected points are marked with a red circle…..

you find attached a test file
3Darc.dwg

3darc.dwg

2
GrzegorzP

November 2025

Works great thx
