Civil Area Label Style Units

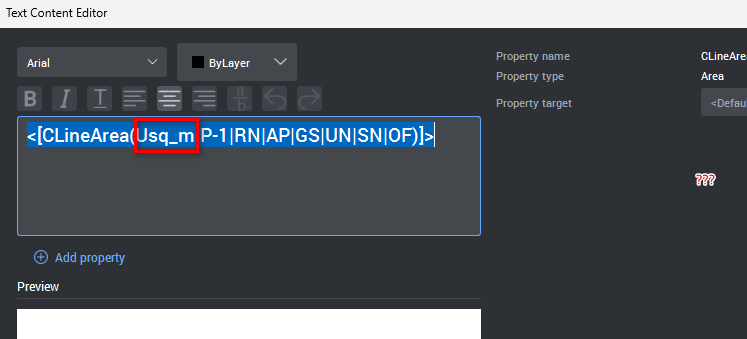

I am still struggling with Units in BCAD V26 Civil. I want to create a Civil > General > Area Label Style. I cannot change the units to Square Feet. Screen capture shows no place to edit units in Text Content Editor. Just for giggles, I edited the blue highlighted content and replaced Usq_m with Usq_ft. It appears to have worked but precision is not as desired. I replaced P-1 with P- and the value rounded to nearest foot.
0
Comments
-
For Acres use Uac.
Correction on precision use P1, P2, etc., no dash.
0 -
I made tool buttons because I did not like having to type the name of the style.
