Incorrect display hidden arcs and spline on Section to block
When exporting to 2D, some arcs and splines (generated from radial elements) that should be placed on the “Hidden lines” layer are instead placed on the “Background lines” layer.
Looking for a solution to this problem
0
Comments
-

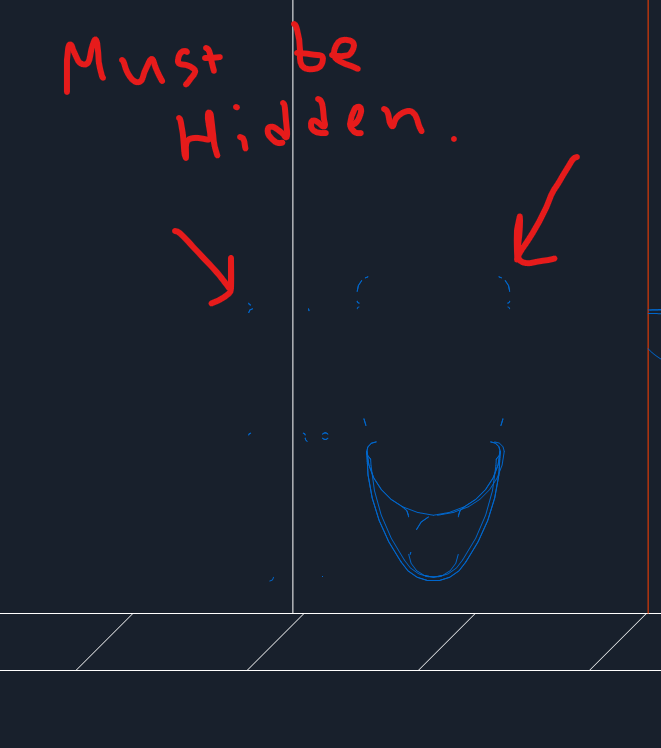

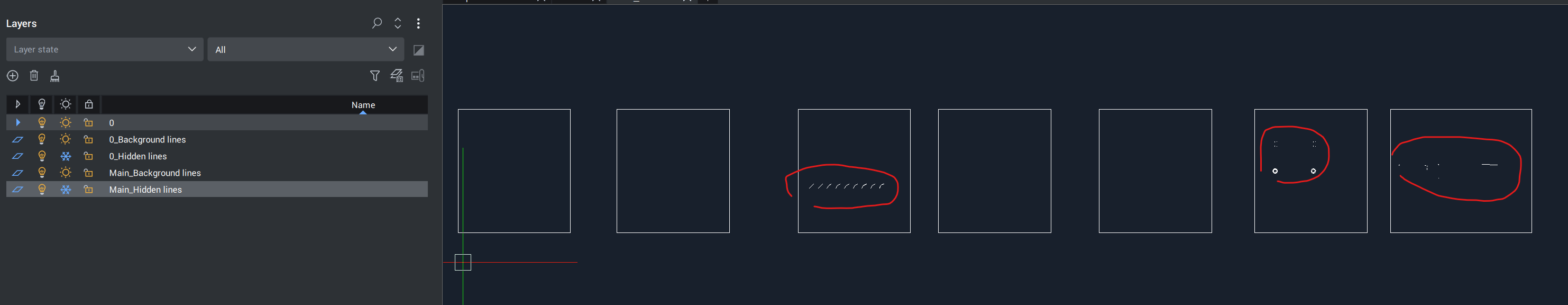

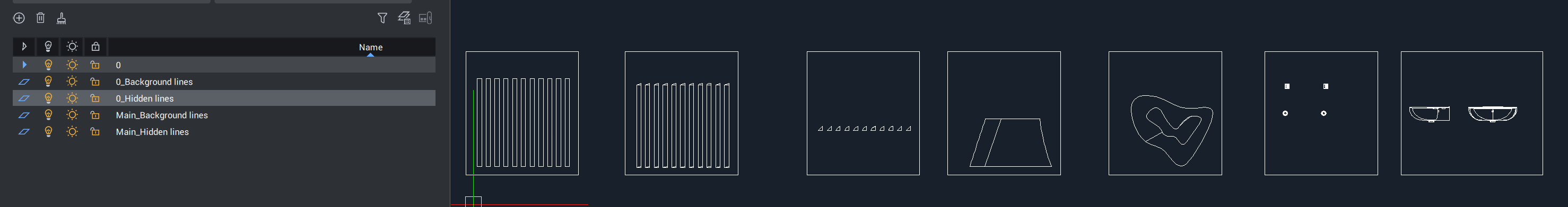

An illustrative example in the attachment.
I consider this to be a very big problem that makes it impossible for the drawings to be drawn properly. Do you have any idea how to fix this?
0
