Set layout tab for "BIMSECTIONUPDATE"

Ian Johnson
Ian Johnson
in BricsCAD BIM

My work flow for creating drawings from the "viewsectionupdate" command is already having a drawing created and sending the section created from the command to the paper space of that drawing.

The problem I have is on my target drawing I only use the one tab titled "Layout1". When I select the section line in the model, I get the message- Missing layout "A1" and no section is created on the target drawing.

How do I send the required section to "Layout1" on my target drawing?

Thanks

Comments

  • chowluca
    chowluca
    edited February 24

    Hallo

    I have the same problem here - multiple sections aimed at one sheet and I cannot reconnect them to the correct layout.

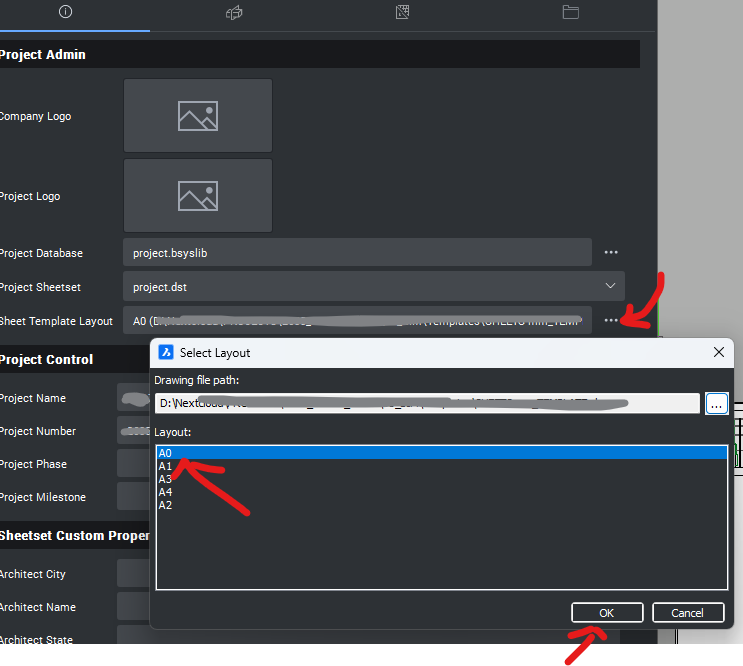

    You can control this by selecting the layout in the SHEET TEMPLATE LAYOUT in the main BIM Project tab → Project Admin > below company logo etc…. 5th line from top.


    Luca
