Clipped Xref containing Pointcloud

Sukovykhap
Sukovykhap
in Point Clouds

BricsCAD v26.1.07

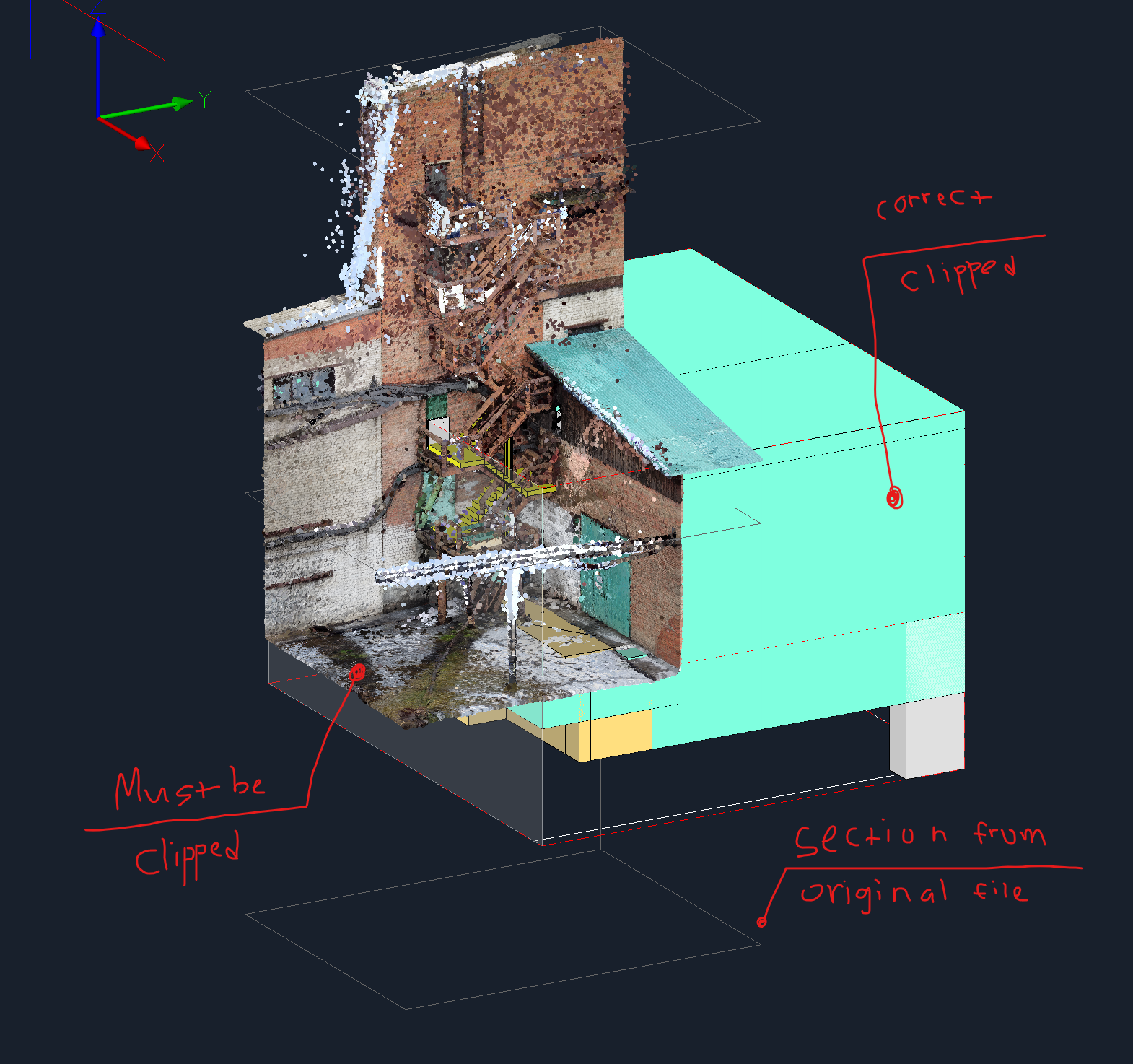

1. There is an issue with clipping an XREF that contains a point cloud using Section → Live Section / Clip Display. Regular geometry (3D solids) is clipped correctly, but the point cloud does not respond. At the same time, if the point cloud already has its own clipping applied using Section → Live Section / Clip Display, that state is preserved and displayed in the file.

This significantly reduces flexibility when preparing drawings.

2. When attempting to clip the XREF using the XCLIP tool, the point cloud disappears from view.
