Grid head bubble visibility controll

admin
admin
in BricsCAD BIM

Hi mates,

Is there anyway that I can turn off the visibility of the grid bubble on any end of the gridline?

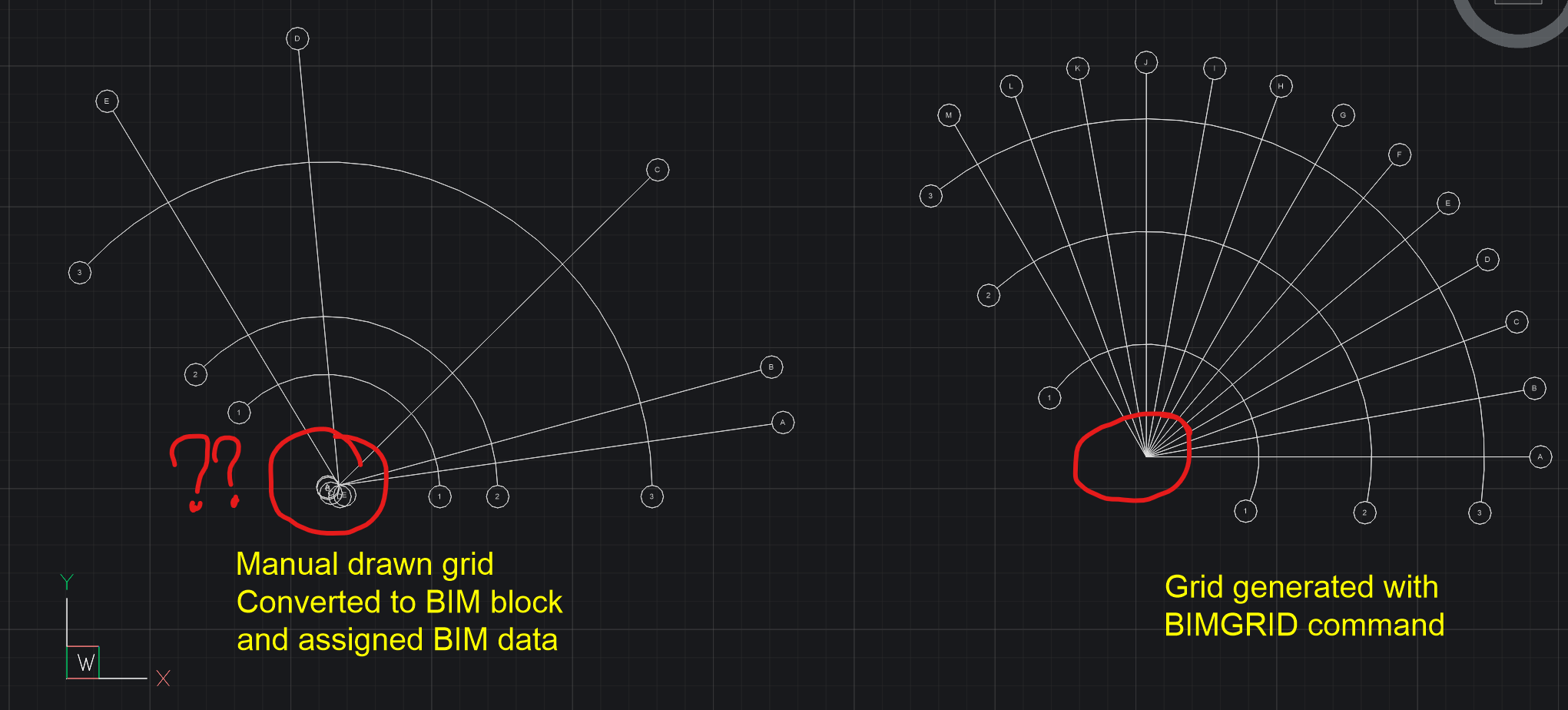

Here you can see my custom radial grid axis came together at the centre of the radial grid and axis bubbles are cluttered together but in standard radial mode it's not.

Now how can I turn off grid bubble on one end of any grid axis?

Please help then it's gonna solve a big problem that I'm facing.


Cheers.

Comments

  • Virgil
    Virgil

    Hello.

    The feature of displaying a label (bubble) on a single end is not yet implemented.
    Automatically, labels are added on both ends.

    With radial grids, when all axes of a direction share a common point, possibly the center of the arcs, then the labels on the shared point are not created (displayed) - see attached.

    bimgrid.dwg
