Blocks dynamic grip
Dear All,
Does anyone own examples of parametric blocks made from Briscad to get dynamic grips like in these links shared by Bricscad
youtube.com/watch?v=XFSVwFFaJsU&t=2s
And a blog :
https://www.bricsys.com/fr-be/blog/dynamic-block-editing-with-dynamic-grips?srsltid=AfmBOop5UnaLvYdFU8rvo-0844pv-qx6XXI0qCm6dqsDXDuxHS-jQSfS
Example 1 :
I wish I could get a block made of a simple rectangle (including diagonals) and get handle grips to modify Width or Height of the rectangle.
Example 2 :
I wish I could get a block made of a simple rectangle (including diagonals) and get a toggle button to switch the visibility state (rectangle horizontal or vertical)
Thank you for your help
https://www.bricsys.com/fr-be/blog/dynamic-block-editing-with-dynamic-grips?srsltid=AfmBOop5UnaLvYdFU8rvo-0844pv-qx6XXI0qCm6dqsDXDuxHS-jQSfS
Comments
-
In near by topic - was published example of parametric blocks for Timber structure. Basically rectangles with grips and visibilities.
0 -
Thank you for your reply but I cannot find what I want.
How to insert in a parametric block (with the bricscad block editor) some stretch grips (to strectch a block) and toggle button (to switch visibility states).
To be clear, are only Autocad's dynamic blocks capable of creating these features ?

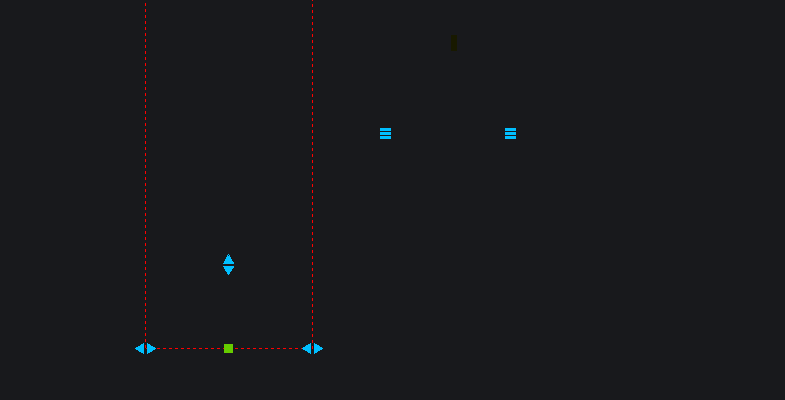

Please see attached png file.
TY
0 -
@fst, I think you will find that not all the abilities of Dynamic Blocks are available in Bricscad.
If you look at the Bricscad help in the grip editing section of the below link it mentions that there are certain grips unavailable at present.
I know nothing about Dynamic Blocks, but it may be that Dynamic Blocks originally created in Autocad but demonstrated as being manipulated in Bricscad behave differently from Parametric Blocks created in Bricscad.
0 -
Briscad help mentions that "Grip points are displayed on parametric block references, for exposed parameters related to the following parametric operations : Stretch"
So I do not get why I can't see the grips in the graphical area after inserting some strectch vectors.
The parameters I have created are exposed.
You will find the dwg block enclosed
